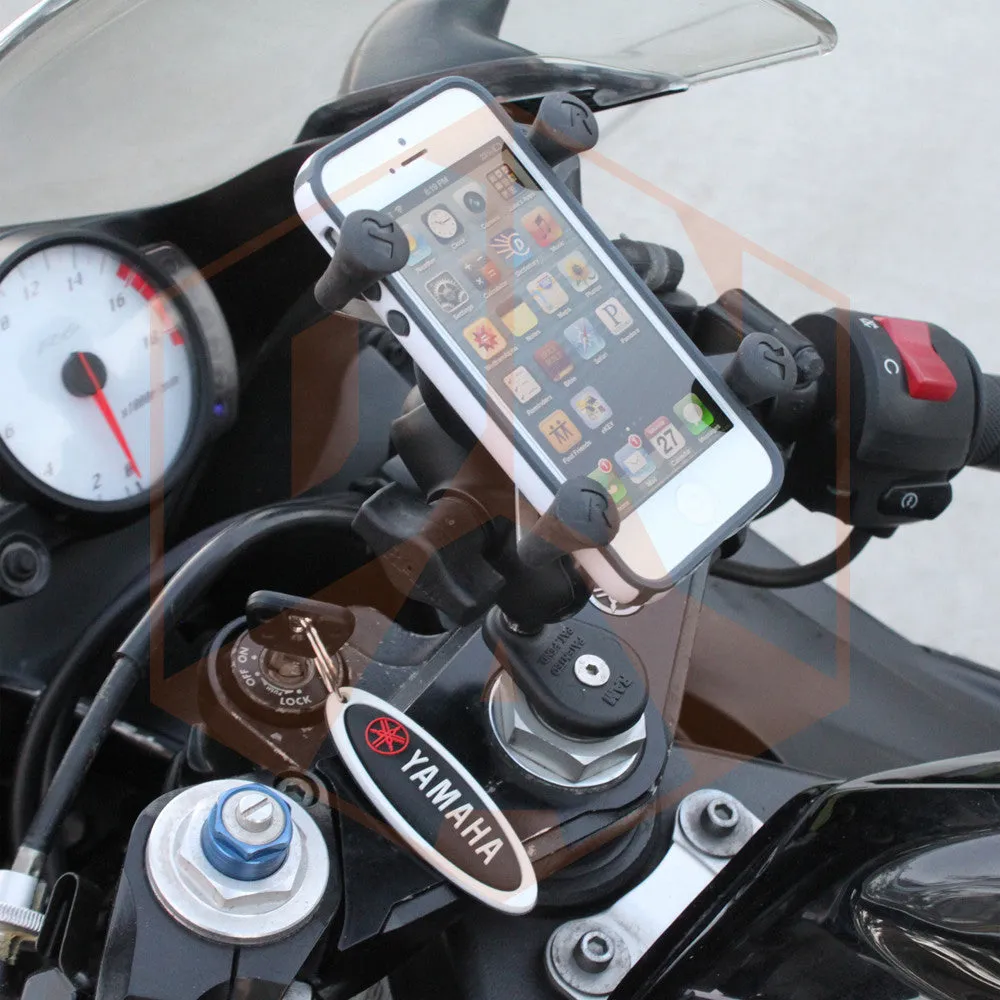

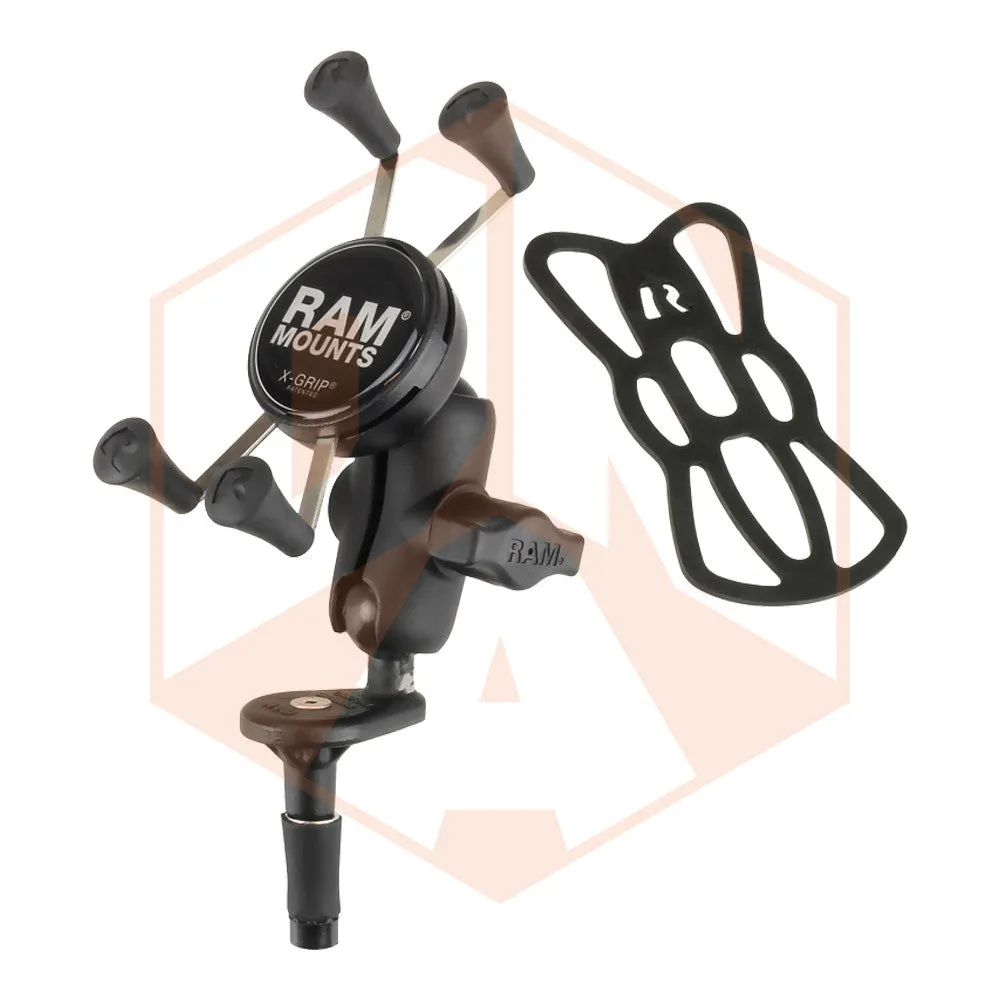

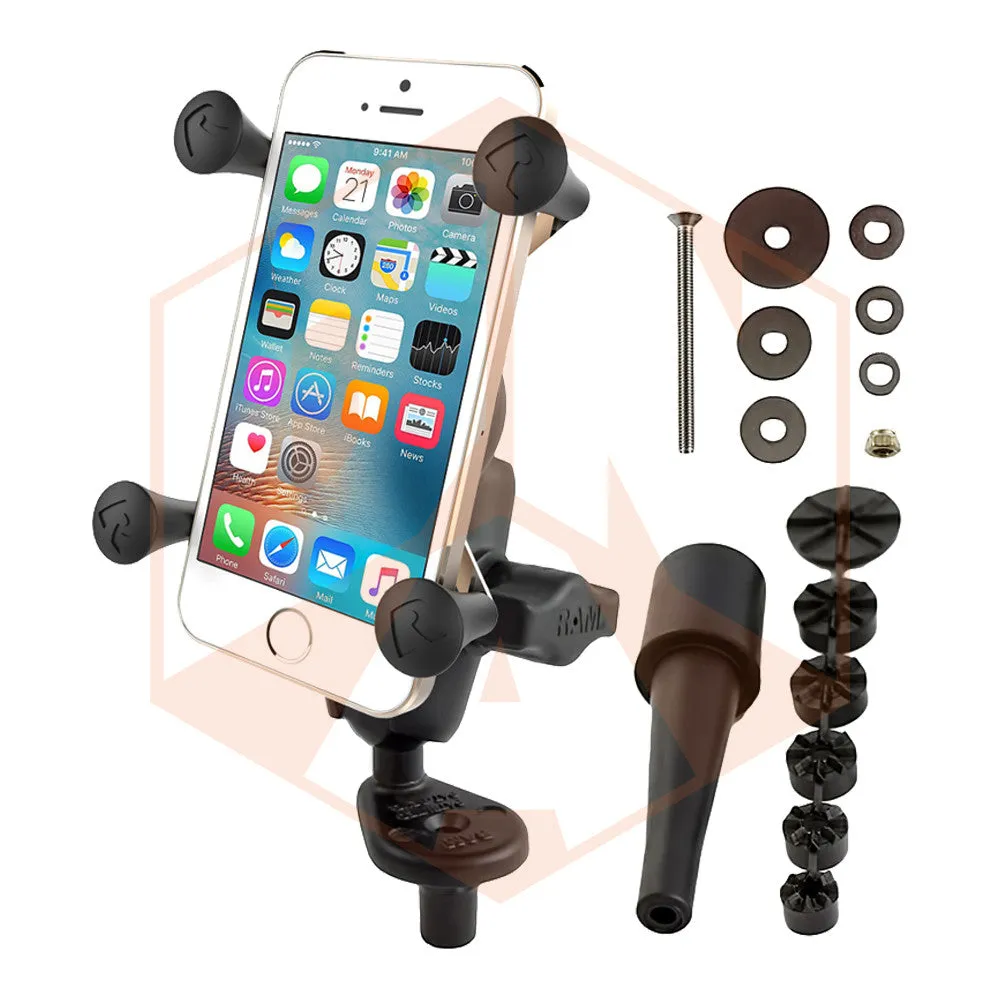

This kit consists of a fork stem base, double socket arm and universal X-Grip® cradle. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone.

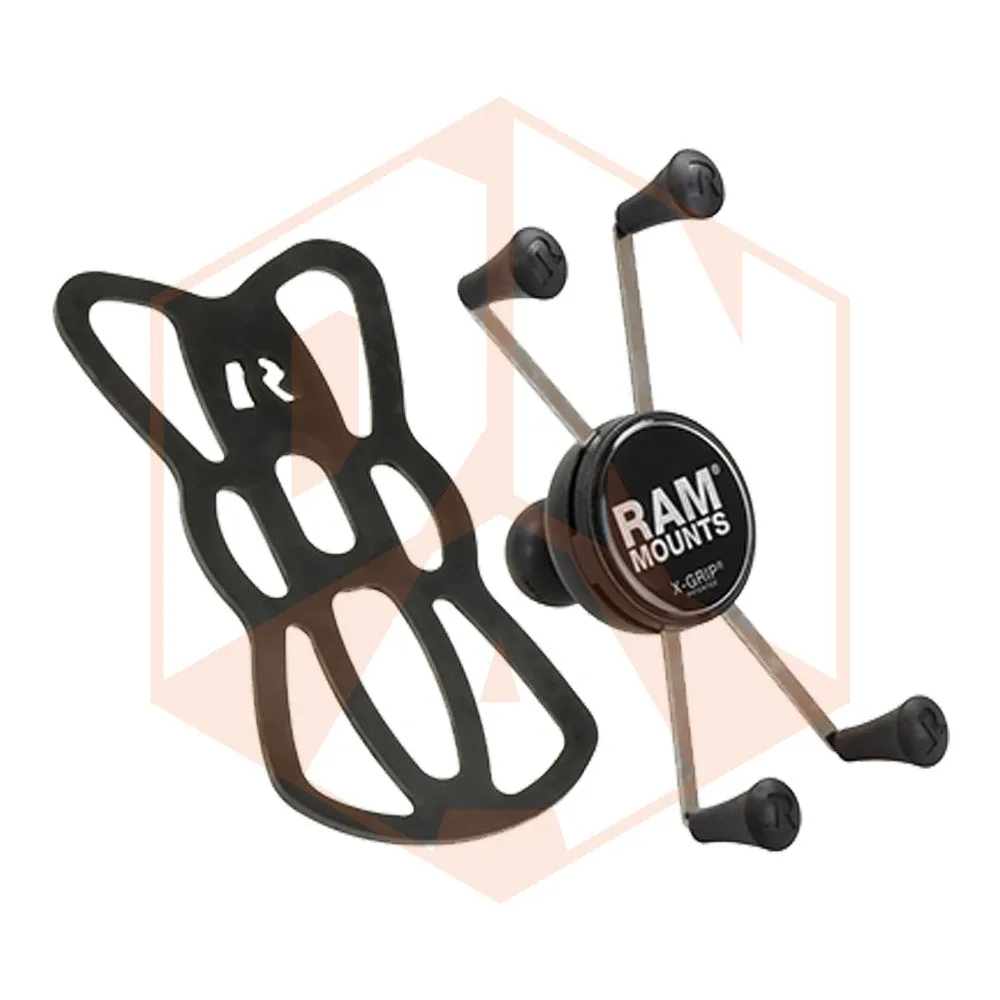

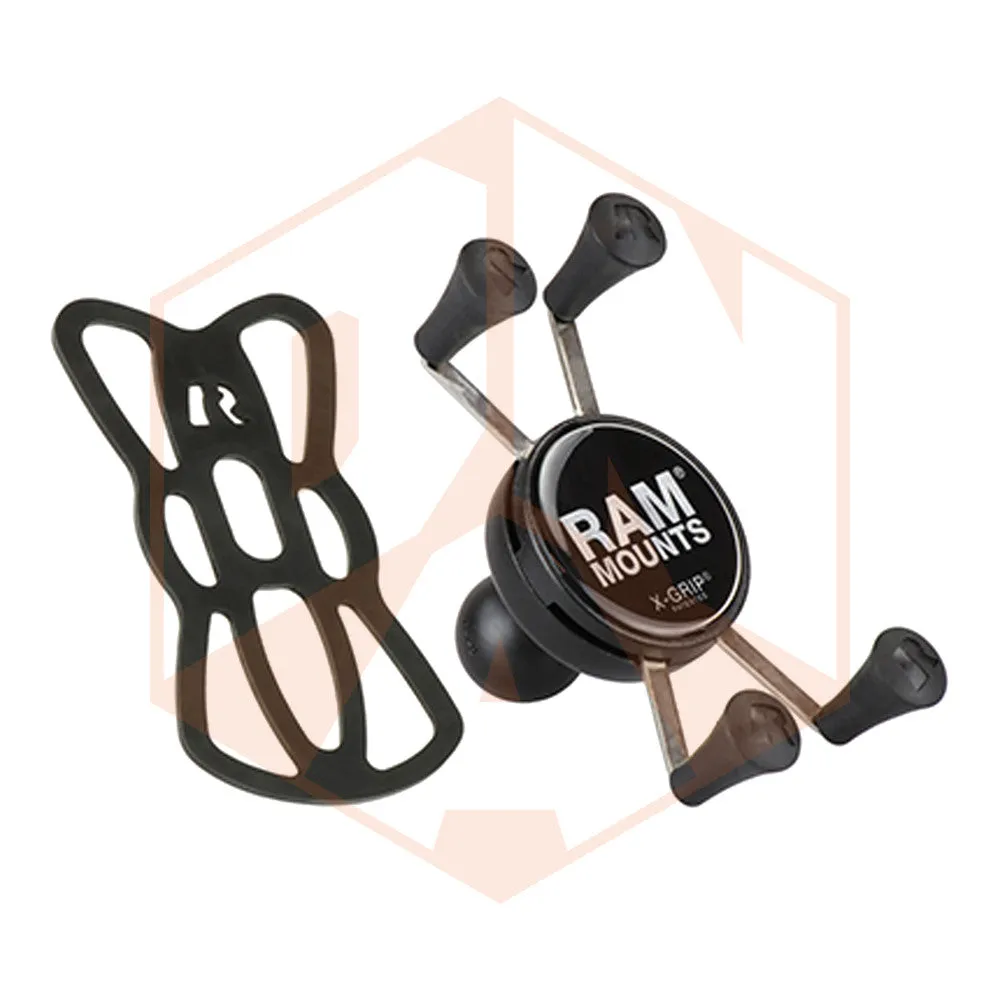

The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

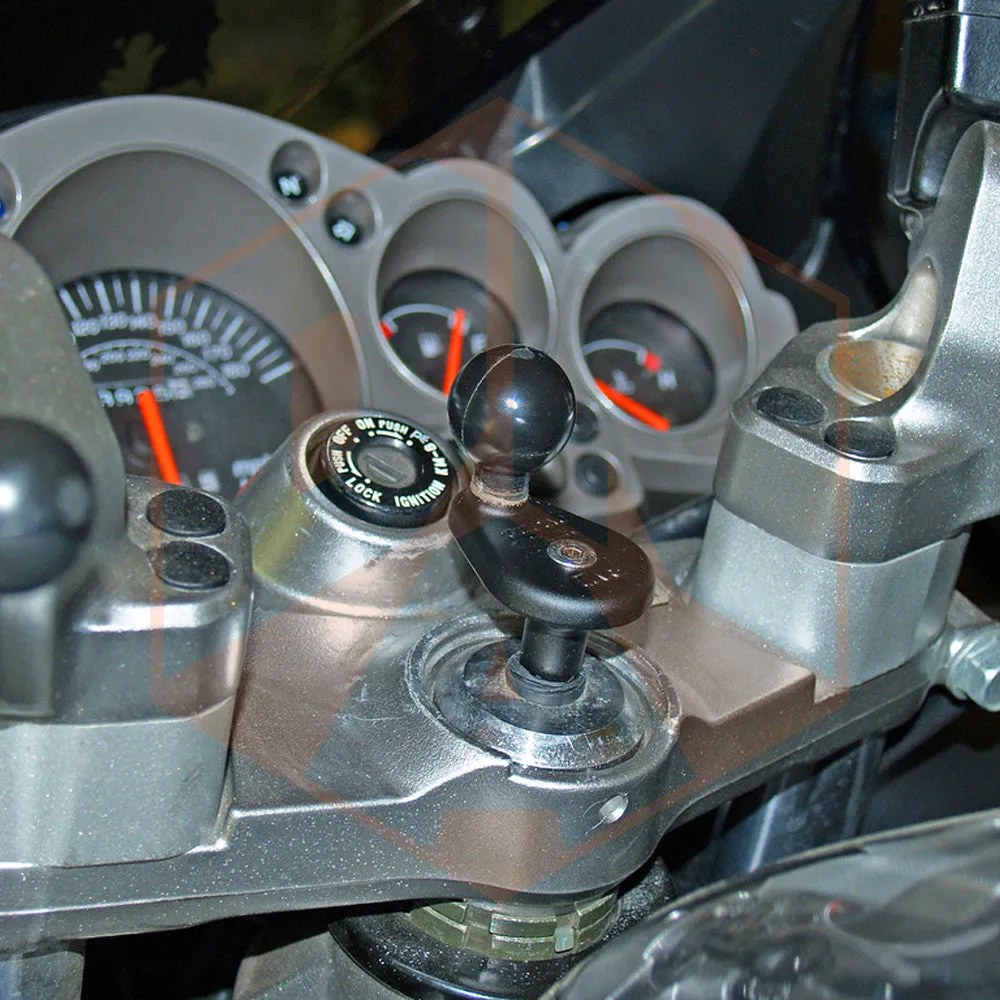

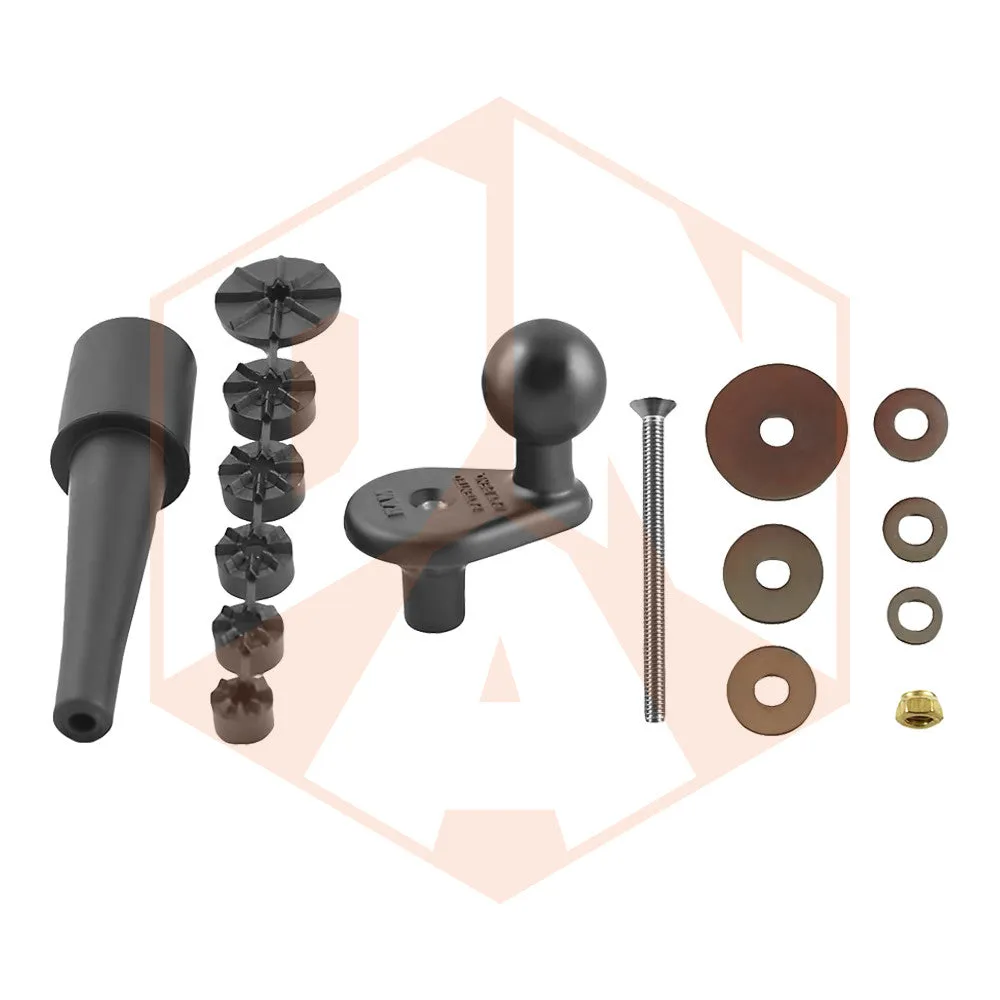

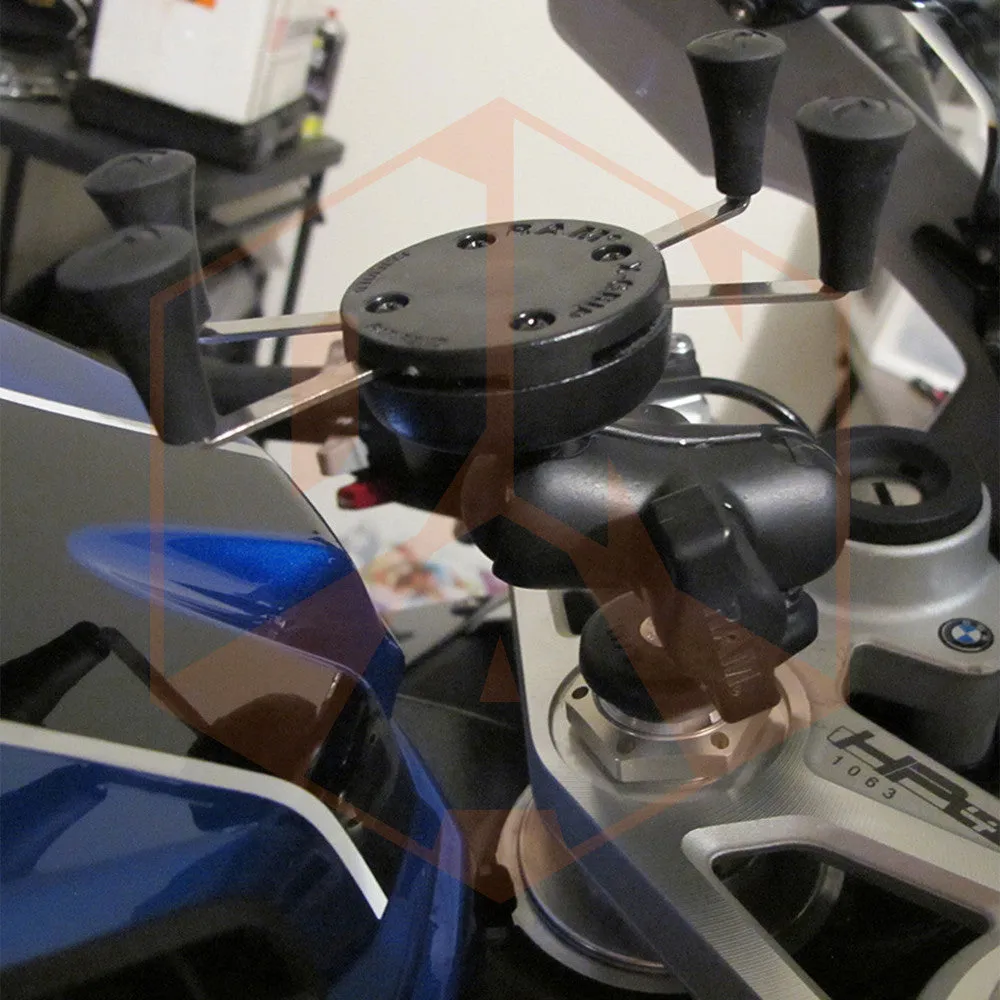

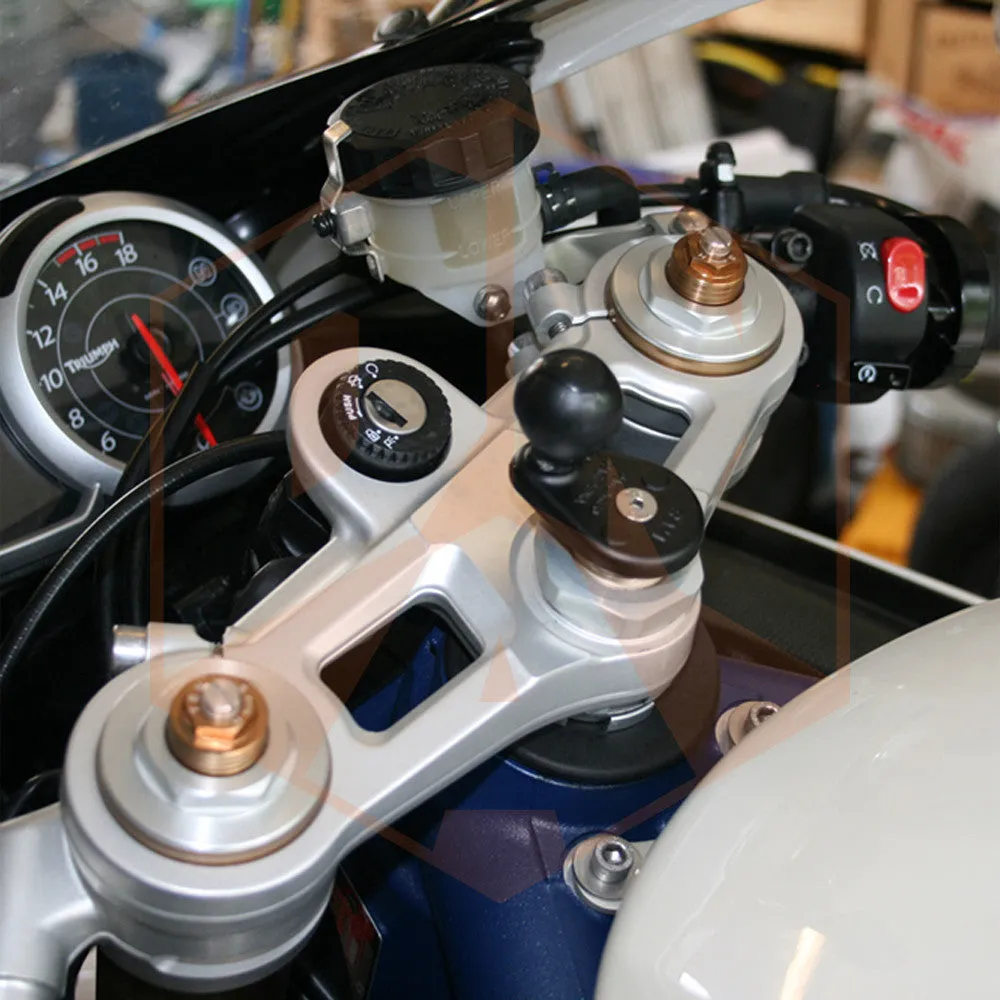

This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 33mm (.5” – 1.29”).

Small X-Grip Dimensions:
Minimum Width = 1.875" (Minimum Height = 4.25")
Maximum Width = 3.25" (Minimum Height = 2.25")
Depth = 0.875"

Large X-grip Dimensions:
Minimum Width = 1.75" (Minimum Height = 5.5")
Maximum Width = 4.5" (Minimum Height = 3.25")
Depth = 0.875"

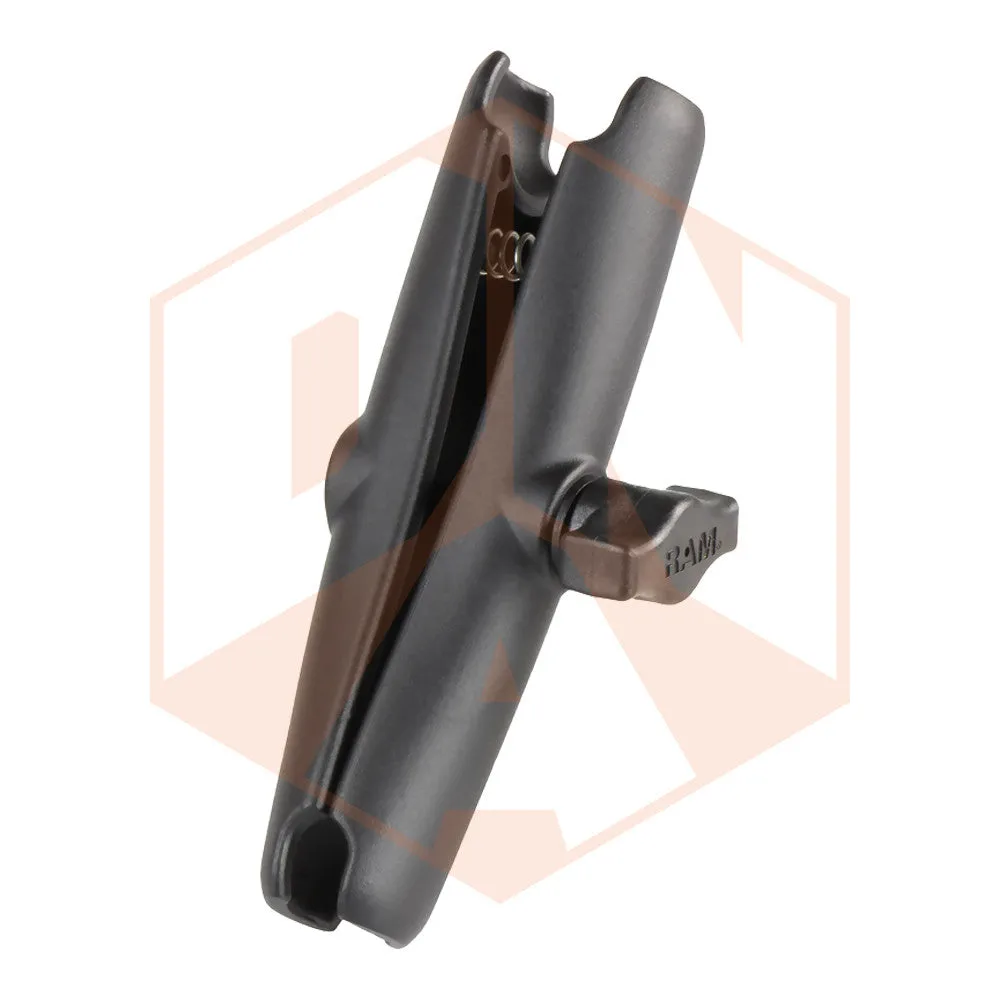

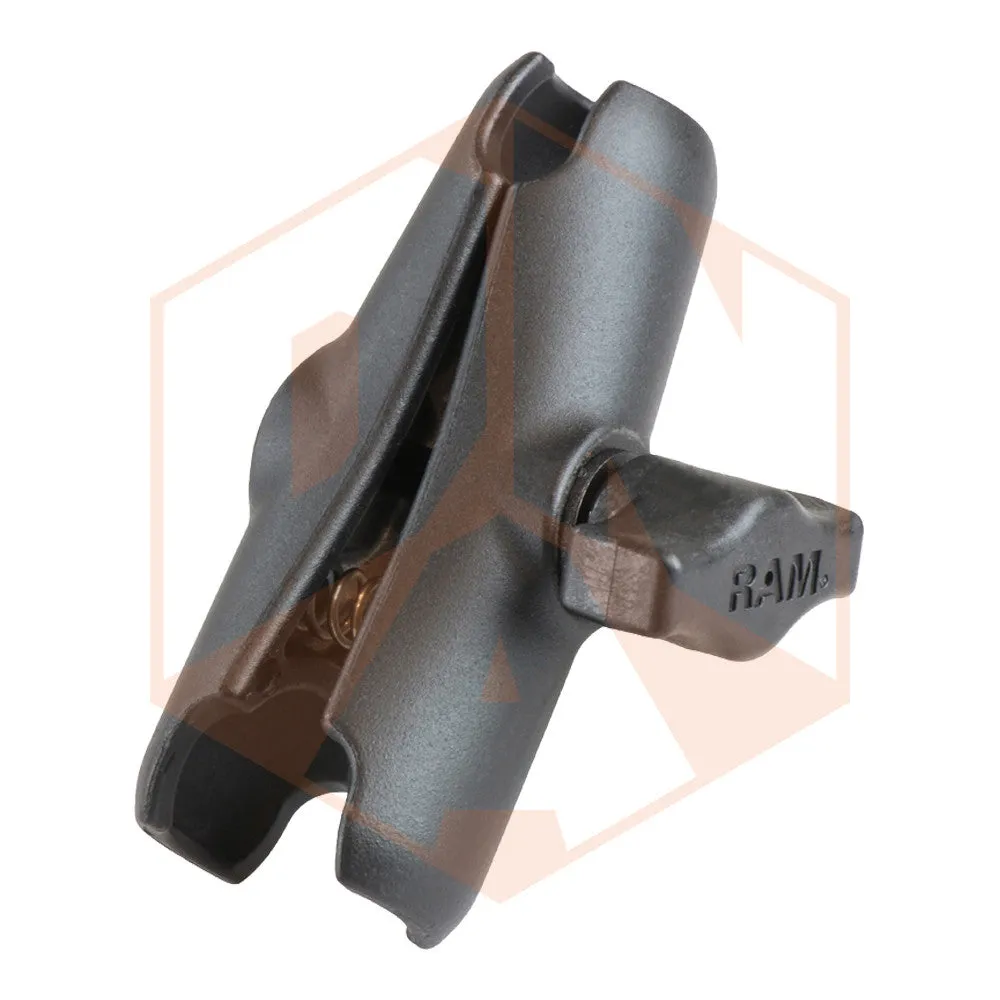

Short Arm Dimensions:
Overall Length: 2.38"
Socket-To-Socket Length: 1.75"

Medium Arm Dimensions:
Overall Length: 3.69"
Socket-To-Socket Length: 3"

Long Arm Dimensions:
Overall Length: 6"
Socket-To-Socket Length: 5.25"

Swivel Arm Dimensions:
Overall Length: 6.25"
Socket-To-Socket Length: 5.5"

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.
