This kit consists of a motorcycle handlebar clamp base with M8 threads, double socket arm and universal X-Grip® cradle. This mount will replace one of the M8 bolt heads on your handlebar clamp system, positioning your device clean in the center. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved.

The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

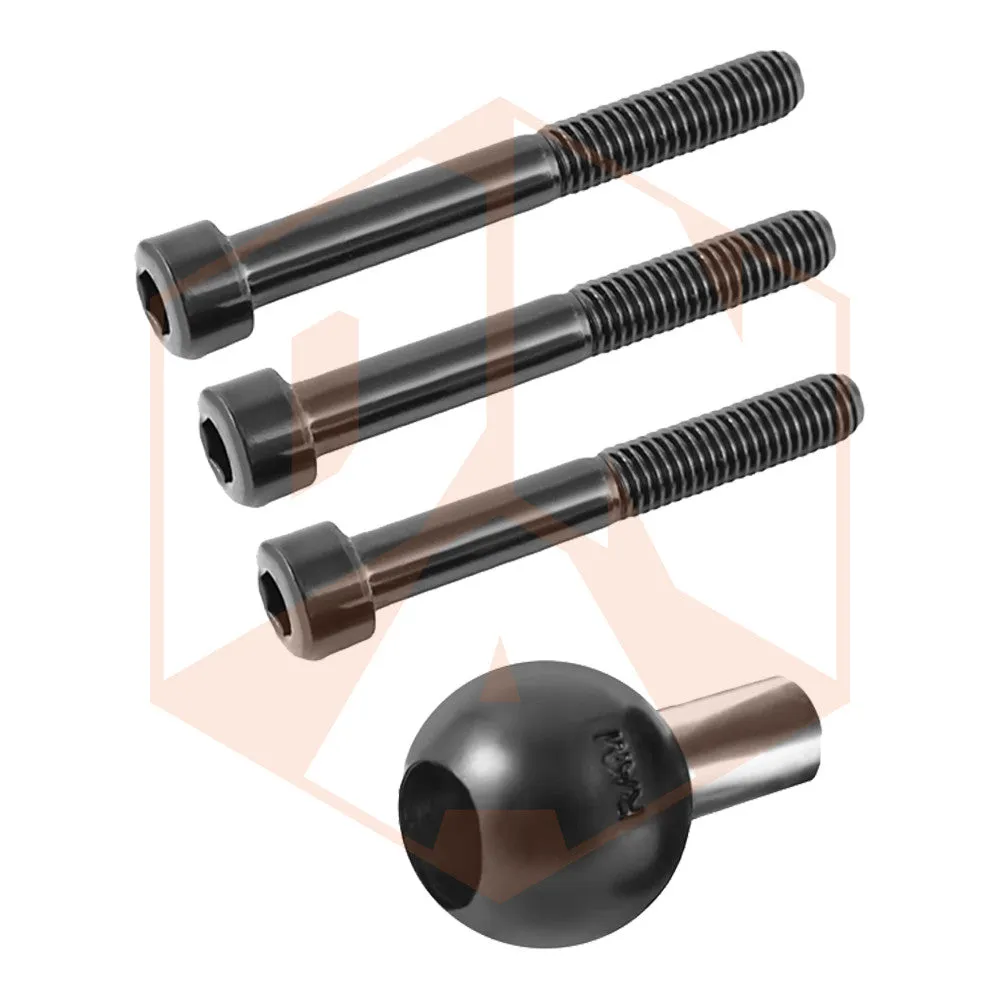

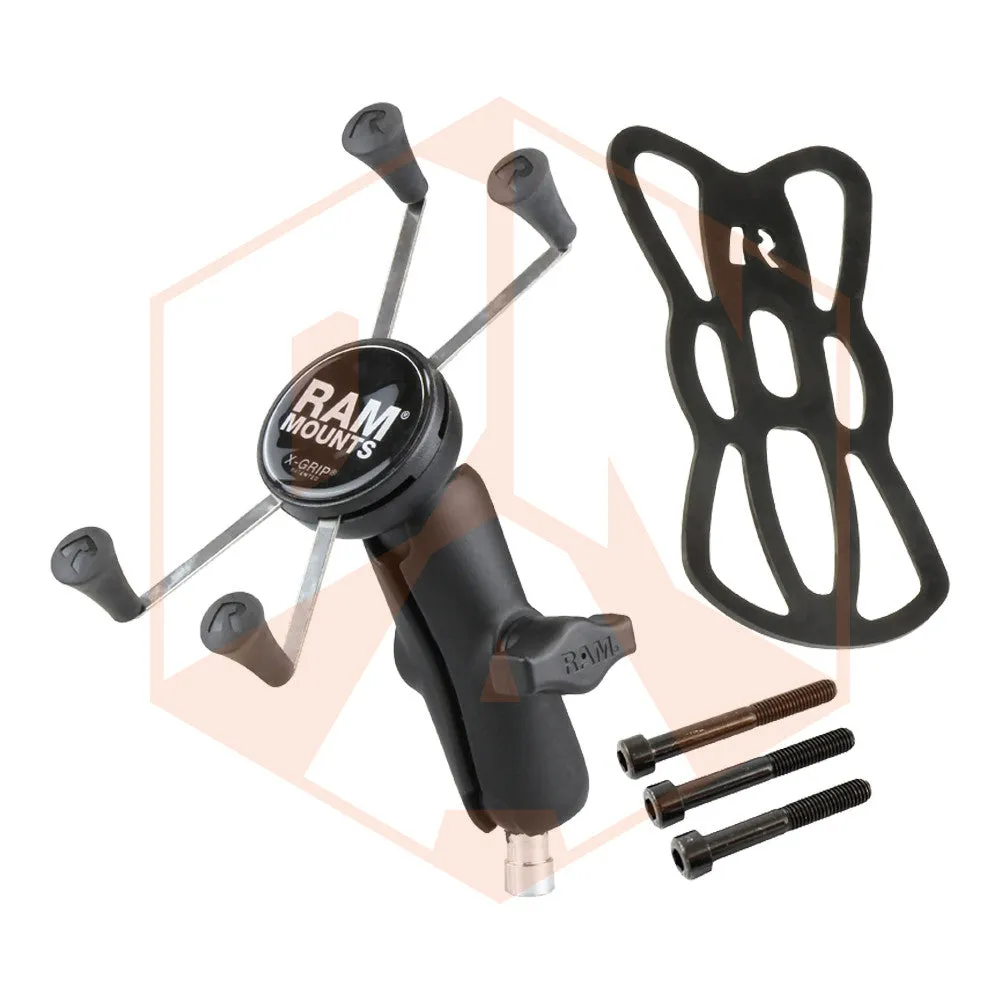

Hardware Included with Purchase:
(1 QTY) M8 x 55 bolt (1.25 thread pitch)
(1 QTY) M8 x 60 bolt (1.25 thread pitch)
(1 QTY) M8 x 65 bolt (1.25 thread pitch)

Small X-Grip Dimensions:
Minimum Width = 1.875" (Minimum Height = 4.25")
Maximum Width = 3.25" (Minimum Height = 2.25")
Depth = 0.875"

Large X-grip Dimensions:
Minimum Width = 1.75" (Minimum Height = 5.5")
Maximum Width = 4.5" (Minimum Height = 3.25")
Depth = 0.875"

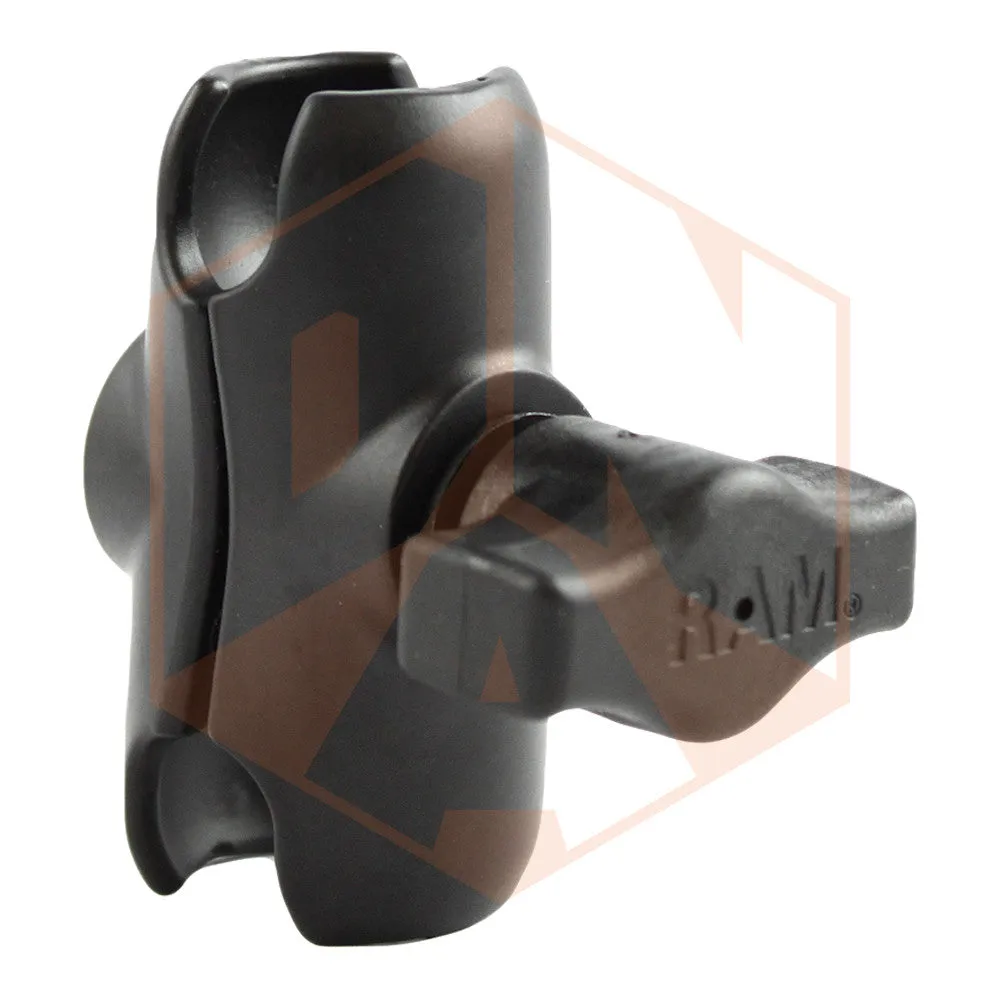

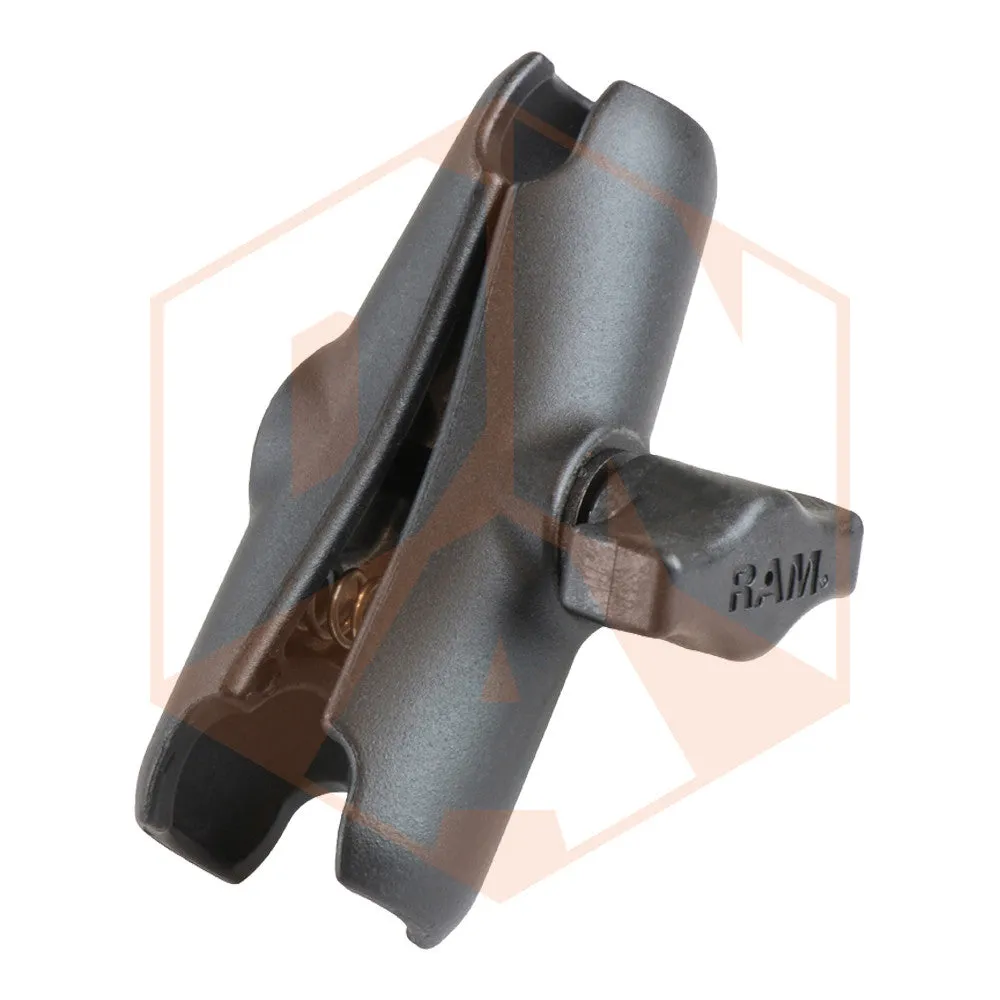

Short Arm Dimensions:
Overall Length: 2.38"
Socket-To-Socket Length: 1.75"

Medium Arm Dimensions:
Overall Length: 3.69"
Socket-To-Socket Length: 3"

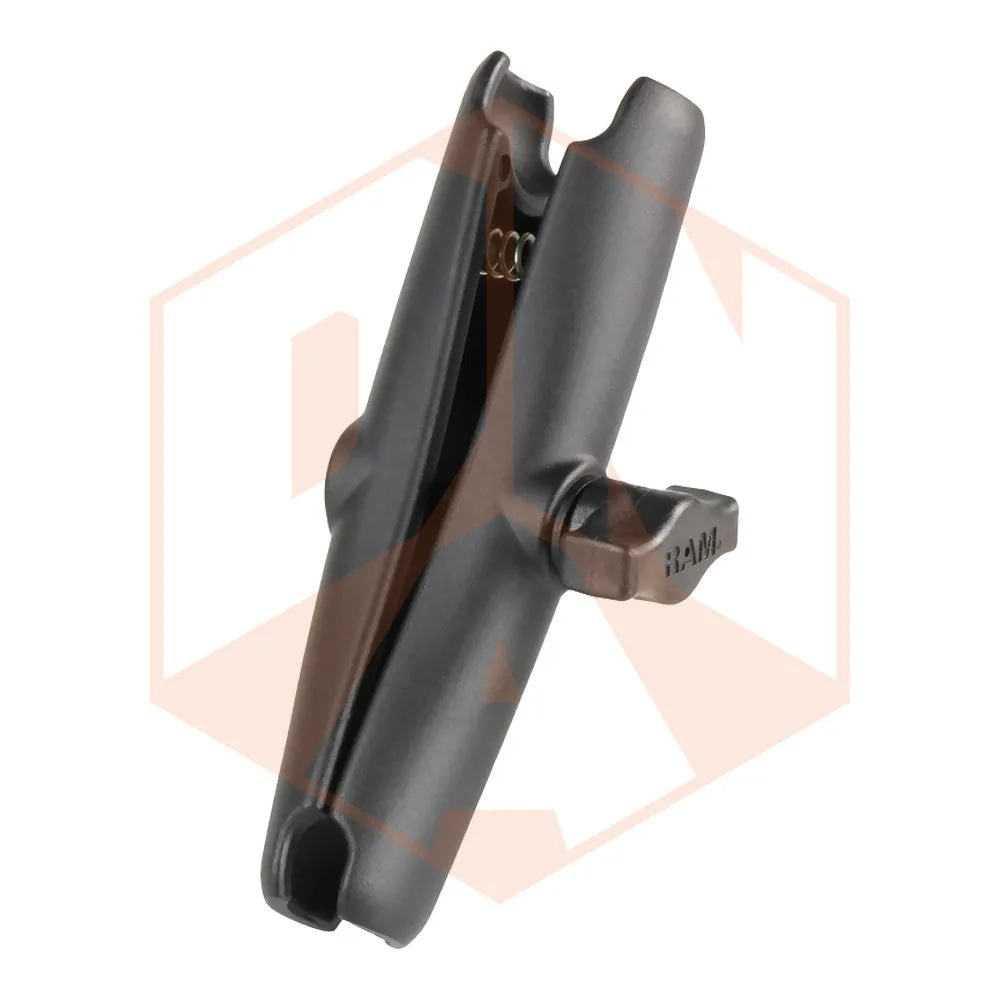

Long Arm Dimensions:
Overall Length: 6"
Socket-To-Socket Length: 5.25"

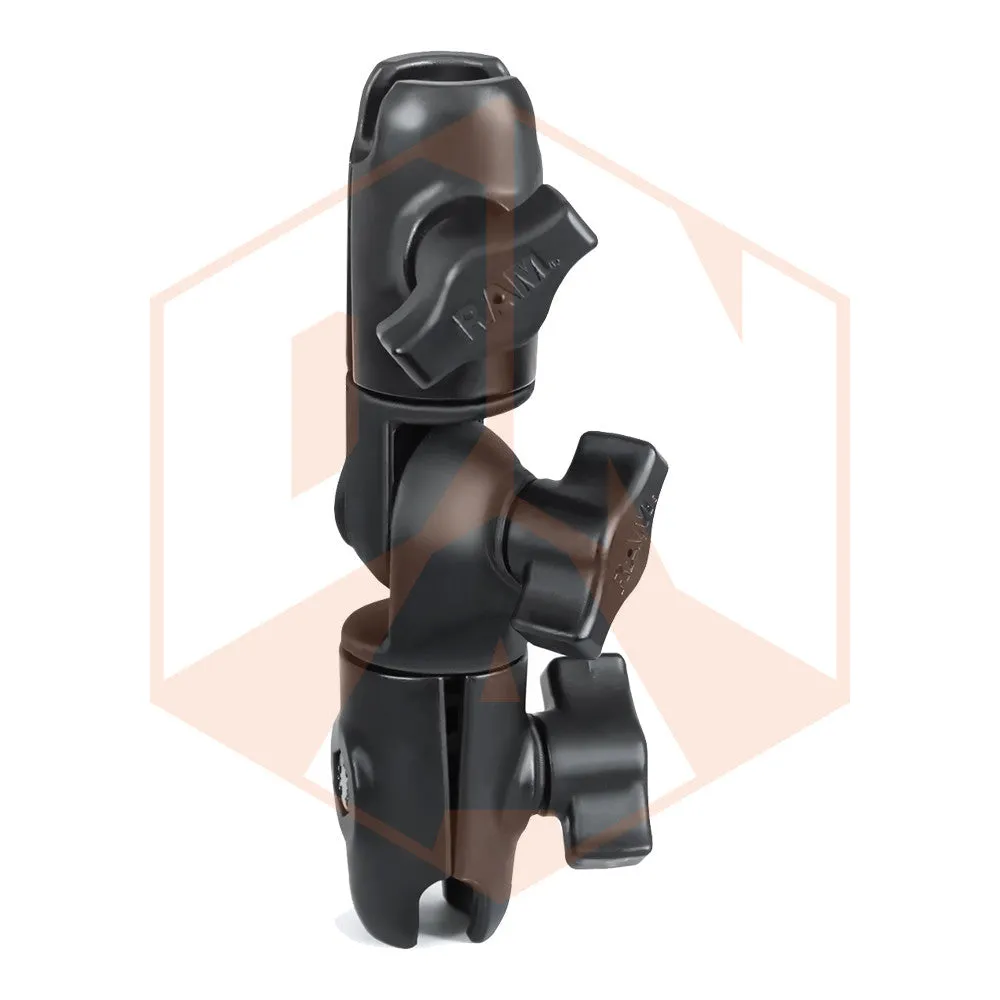

Swivel Arm Dimensions:
Overall Length: 6.25"
Socket-To-Socket Length: 5.5"

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.
